Installing ESXi on Bare Metal (vSphere Setup Part 1)

Installing ESXi is a simple and straight forward process, but there are a few things you need to keep in mind.  The hardware compatibility list is very important.  You should always make sure your hardware is on it if you are using it in an production environment. In a test environment the setup will probably work, but there could always be some issues you may encounter.

We will cover the following items.

  • Check hardware compatibility
  • Download the ESXi image
  • Create bootable image
  • Install
  • Configure

Hardware Compatibility

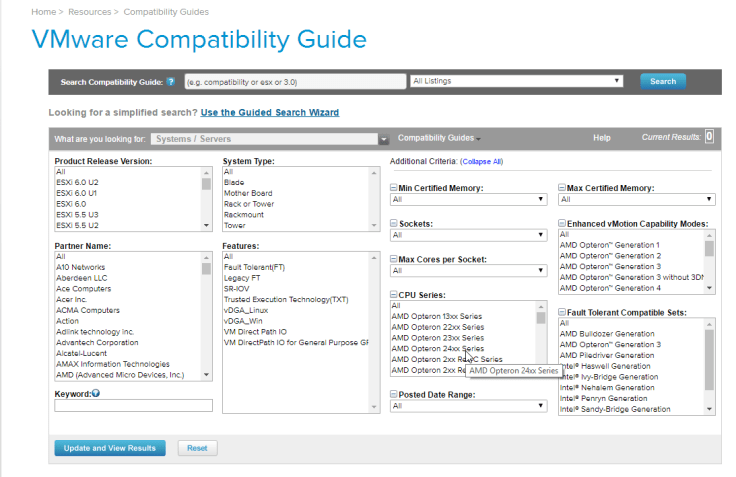

  1. Check for hardware compatibility here.  If your system is not listed and your using this for test  then have no fear.  You will probably be able to install and run everything without and issues.

2016-05-20 14_19_24-VMware Compatibility Guide - System Search.png

2. Go into the BIOS and make sure the CPU virtualization support is turned on.

Download ESXi

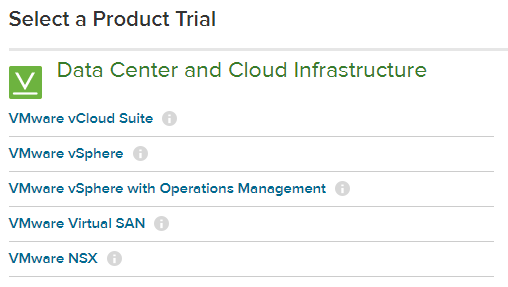

  1. Download ESXi from the VMware website.

2016-05-20 14_20_47-Evaluate and Download VMware Products for a Virtual Infrastructure - VMware _ Un

Once you have the ISO you can burn it to a CD or create a bootable USB drive.  If you want to create a bootable USB drive Rufus works really well for that.

Installing ESXi

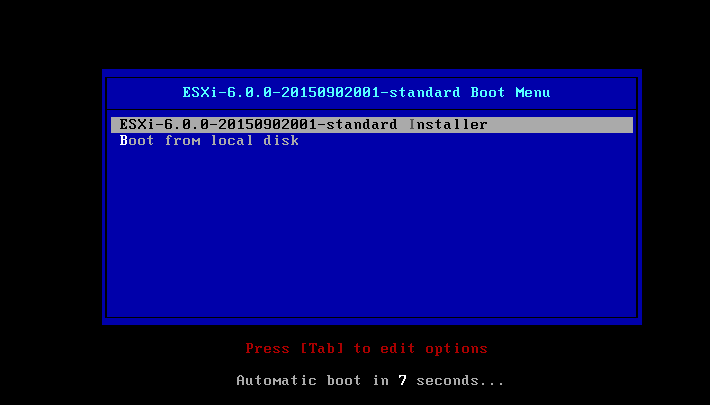

  1. Choose the ESXi installer or wait for it to default to that.

2016-05-20 14_25_06-VMware ESXi 6 - VMware Workstation

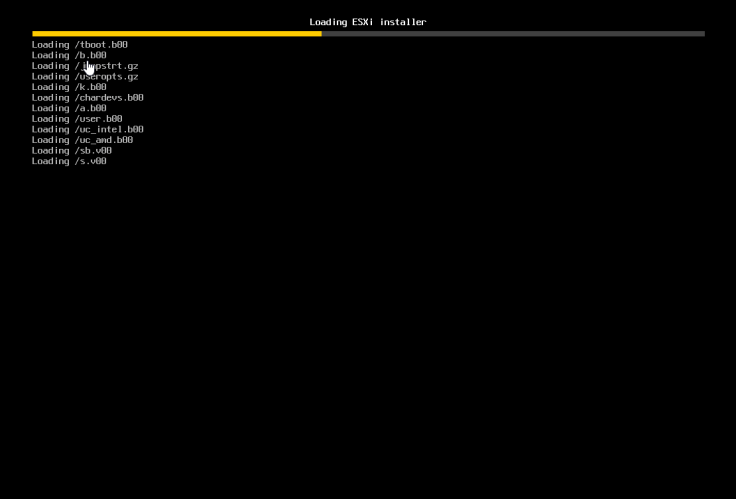

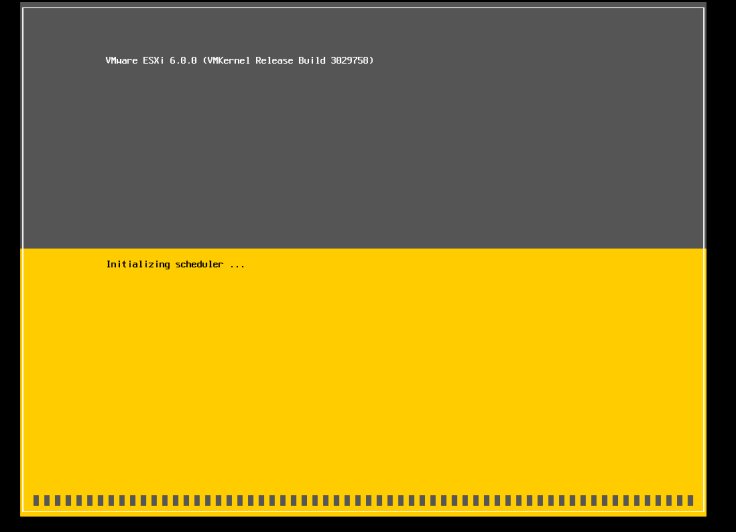

2.  You will see two different progress screens.

2016-05-20 14_25_24-VMware ESXi 6 - VMware Workstation

2016-05-20 14_25_35-VMware ESXi 6 - VMware Workstation2016-05-20 14_27_18-VMware ESXi 6 - VMware Workstation

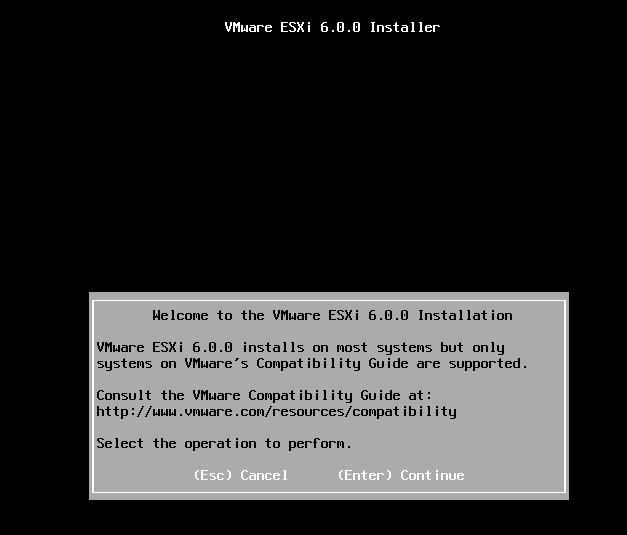

3. Press enter then F11.

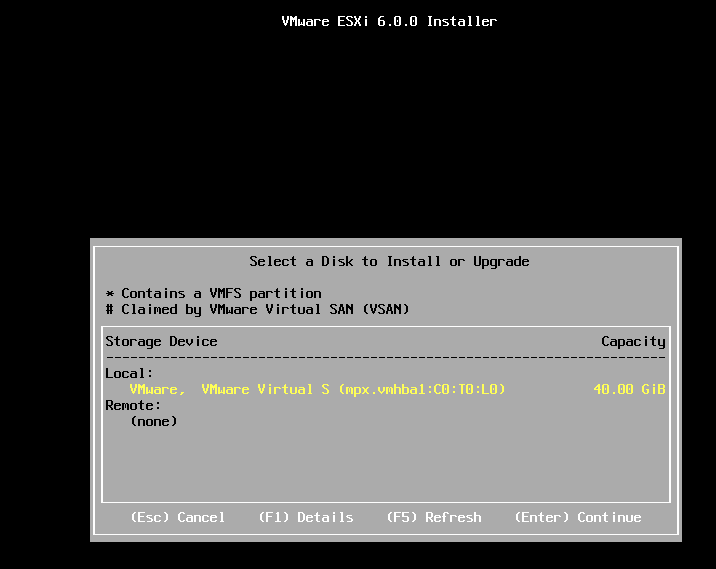

4. Choose location to install it.

2016-05-20 14_30_55-VMware ESXi 6 - VMware Workstation

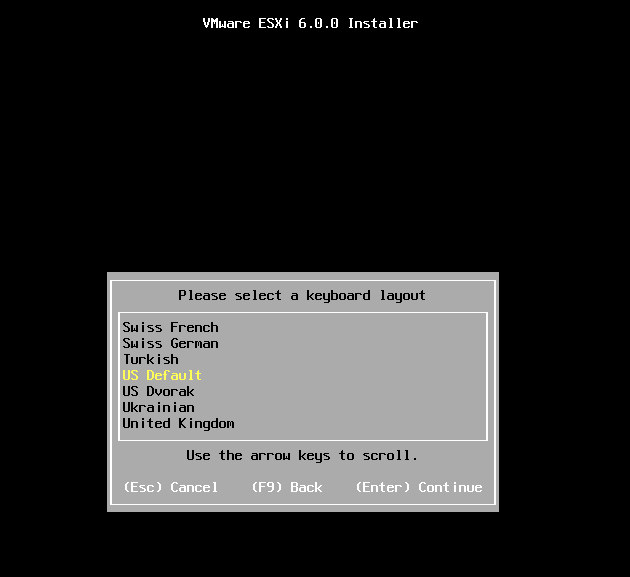

5. Choose language

2016-05-20 14_31_34-VMware ESXi 6 - VMware Workstation

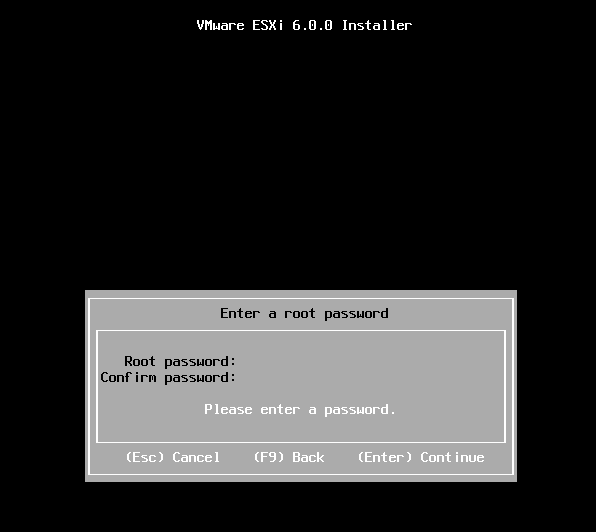

6. Choose password

2016-05-20 14_32_40-VMware ESXi 6 - VMware Workstation

7. It will not scan your system for its hardware.

2016-05-20 14_34_46-VMware ESXi 6 - VMware Workstation

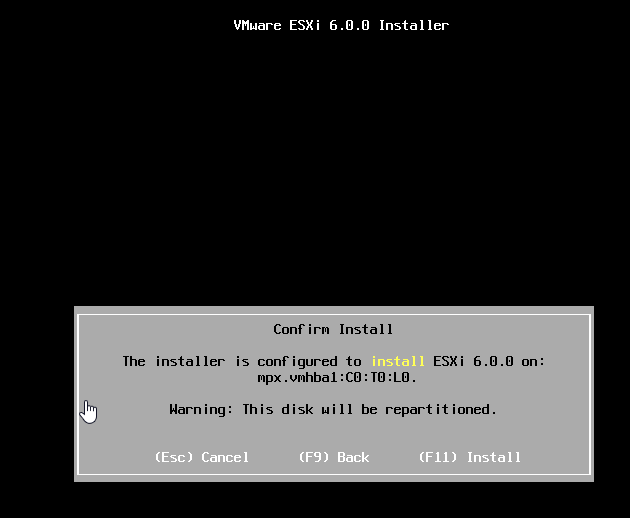

8. Press F11 to insall.

2016-05-20 14_35_43-VMware ESXi 6 - VMware Workstation

9. Wait for the progress bar.

2016-05-20 14_36_36-VMware ESXi 6 - VMware Workstation

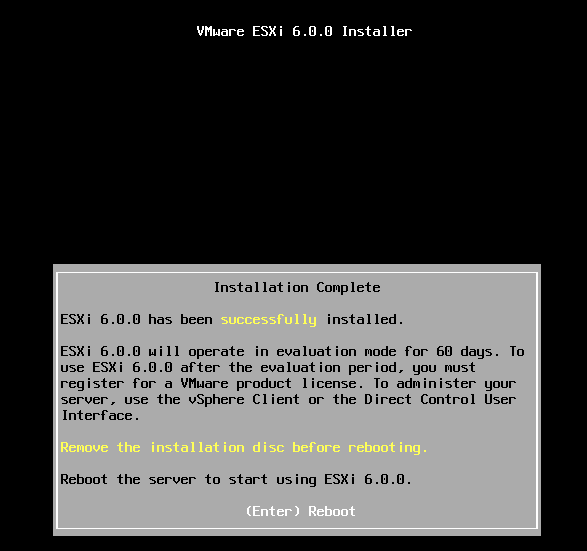

10. Press enter to reboot.

2016-05-20 14_38_00-VMware ESXi 6 - VMware Workstation

Now ESXi is installed.  In my next post I will show how to setup the configuration on a ESXi host.
